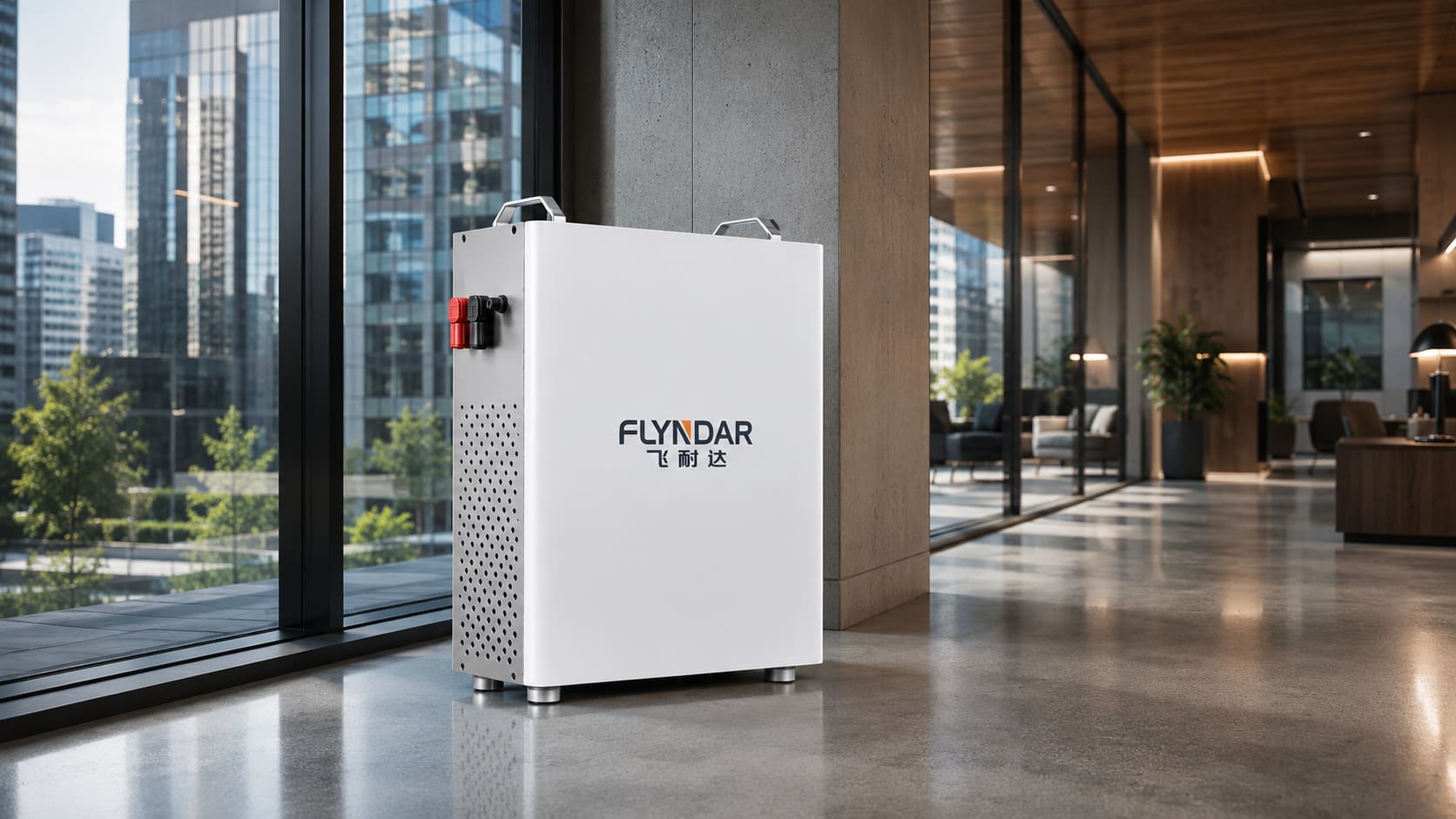

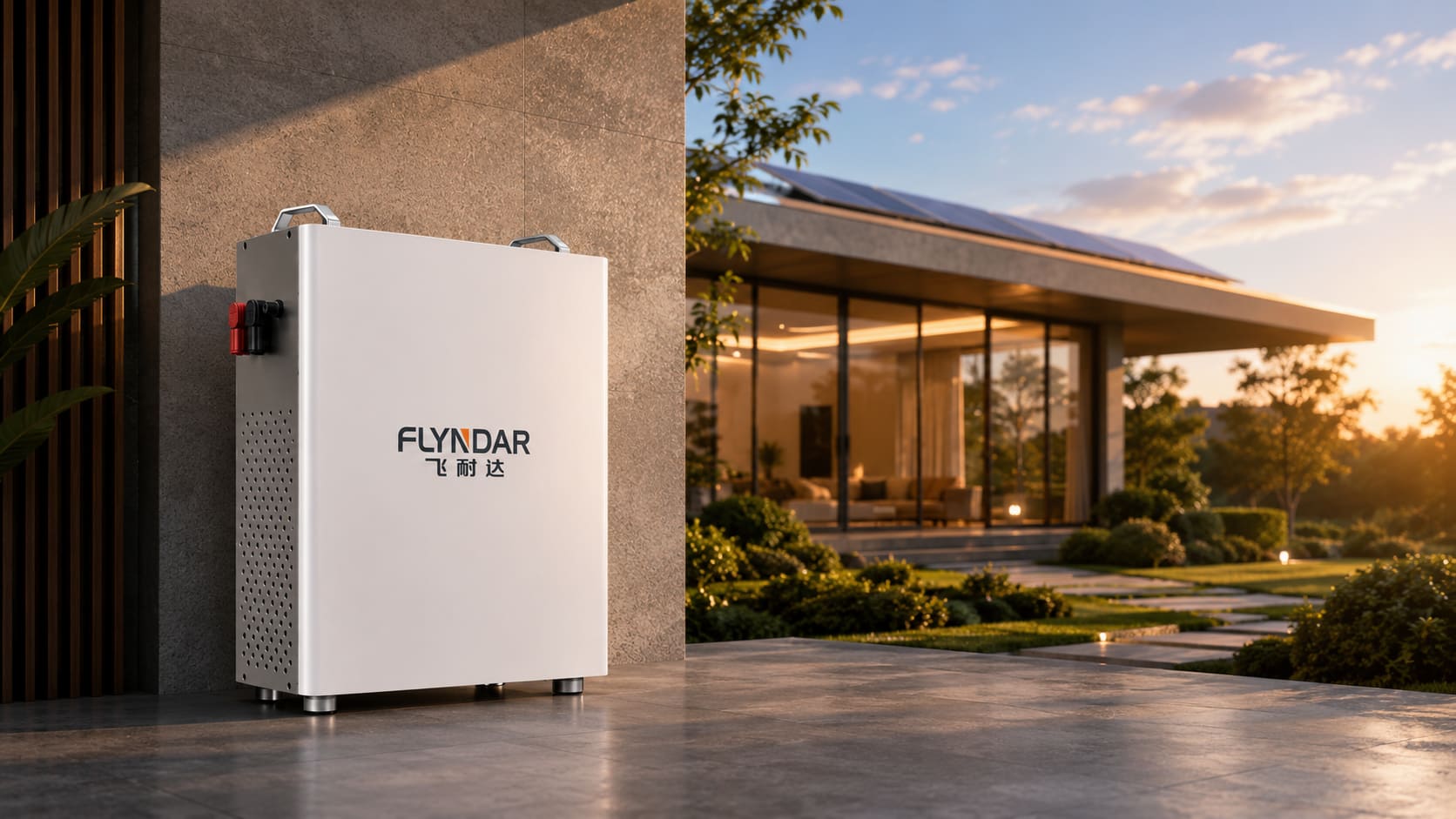

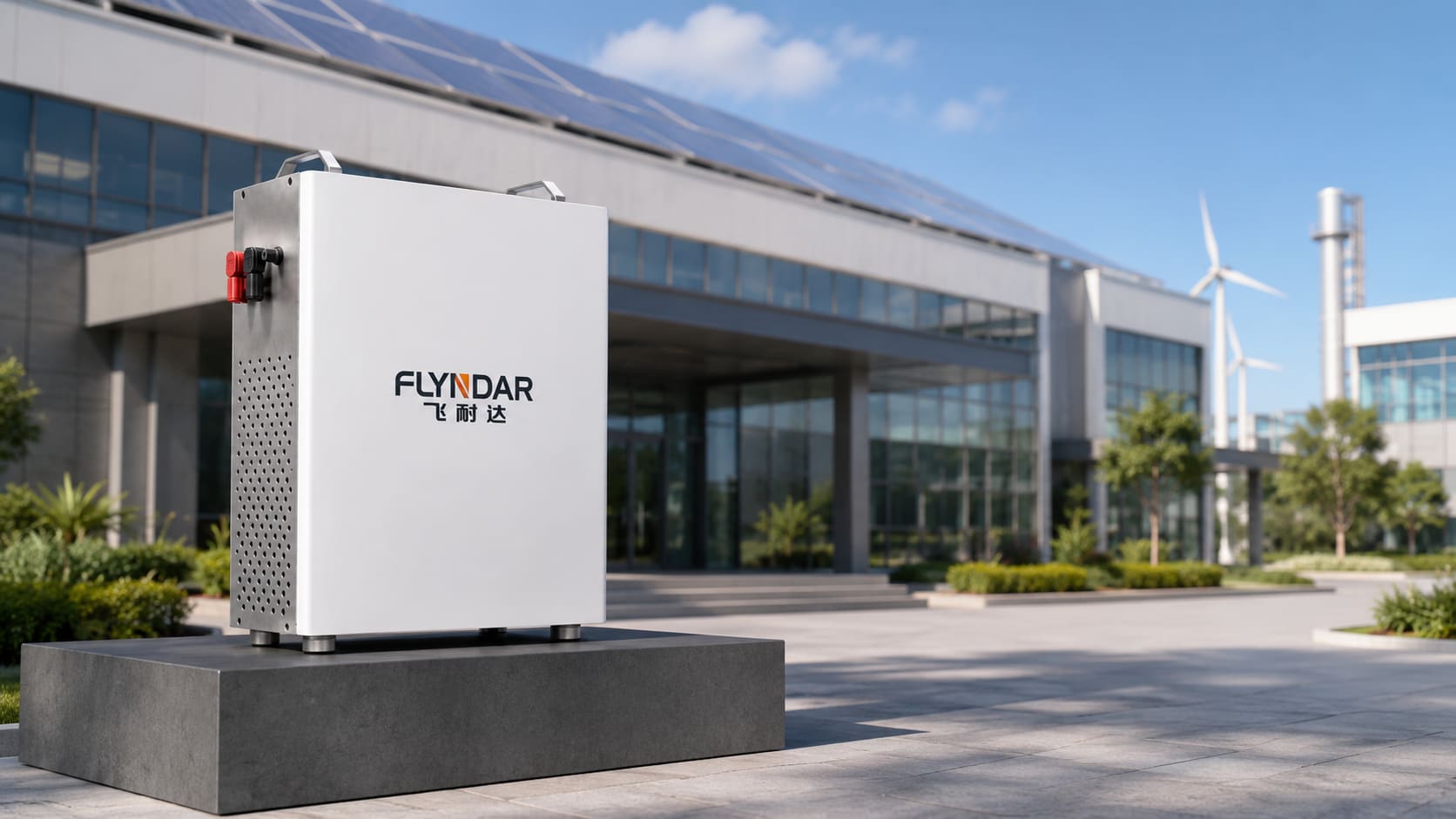

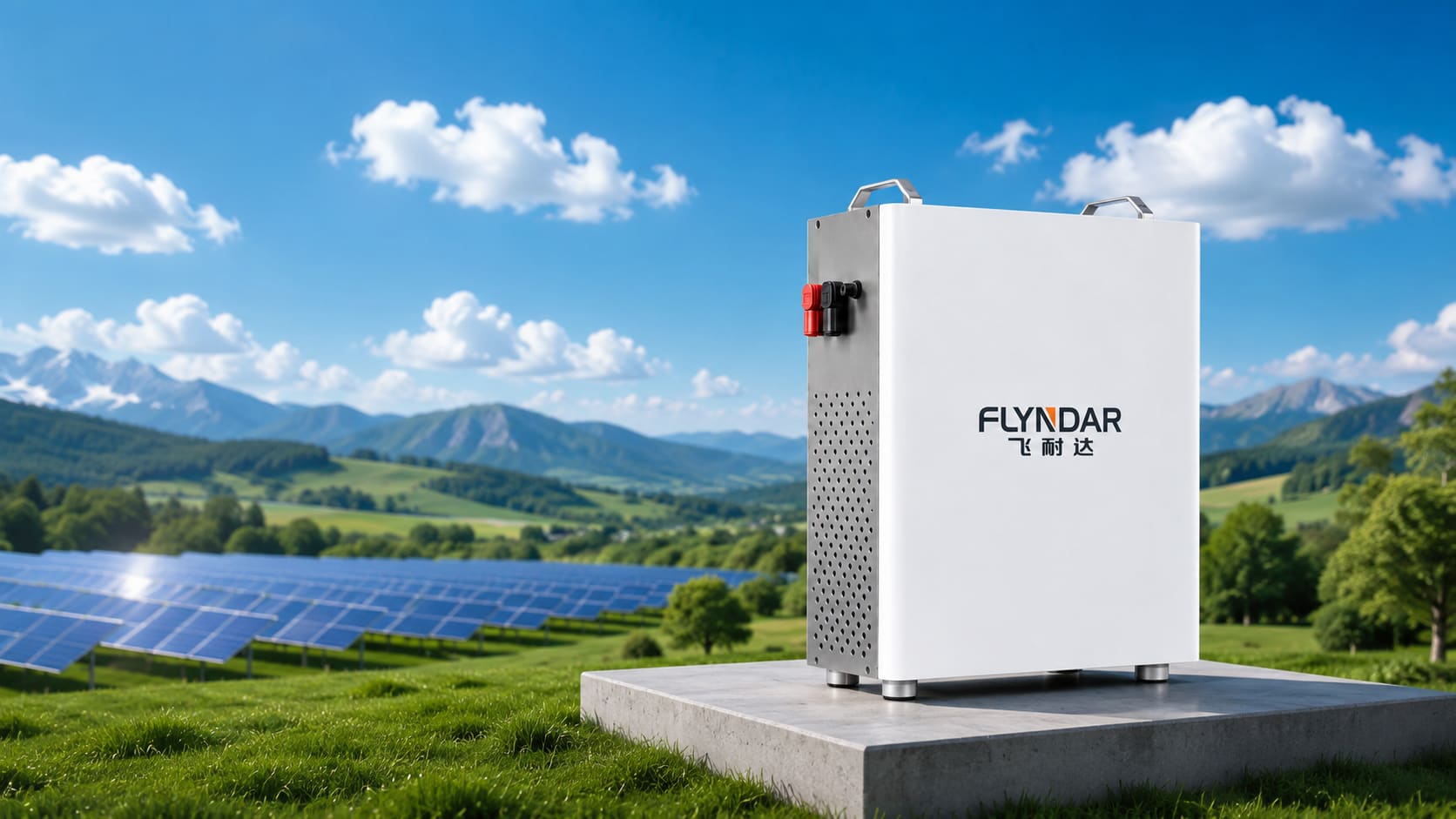

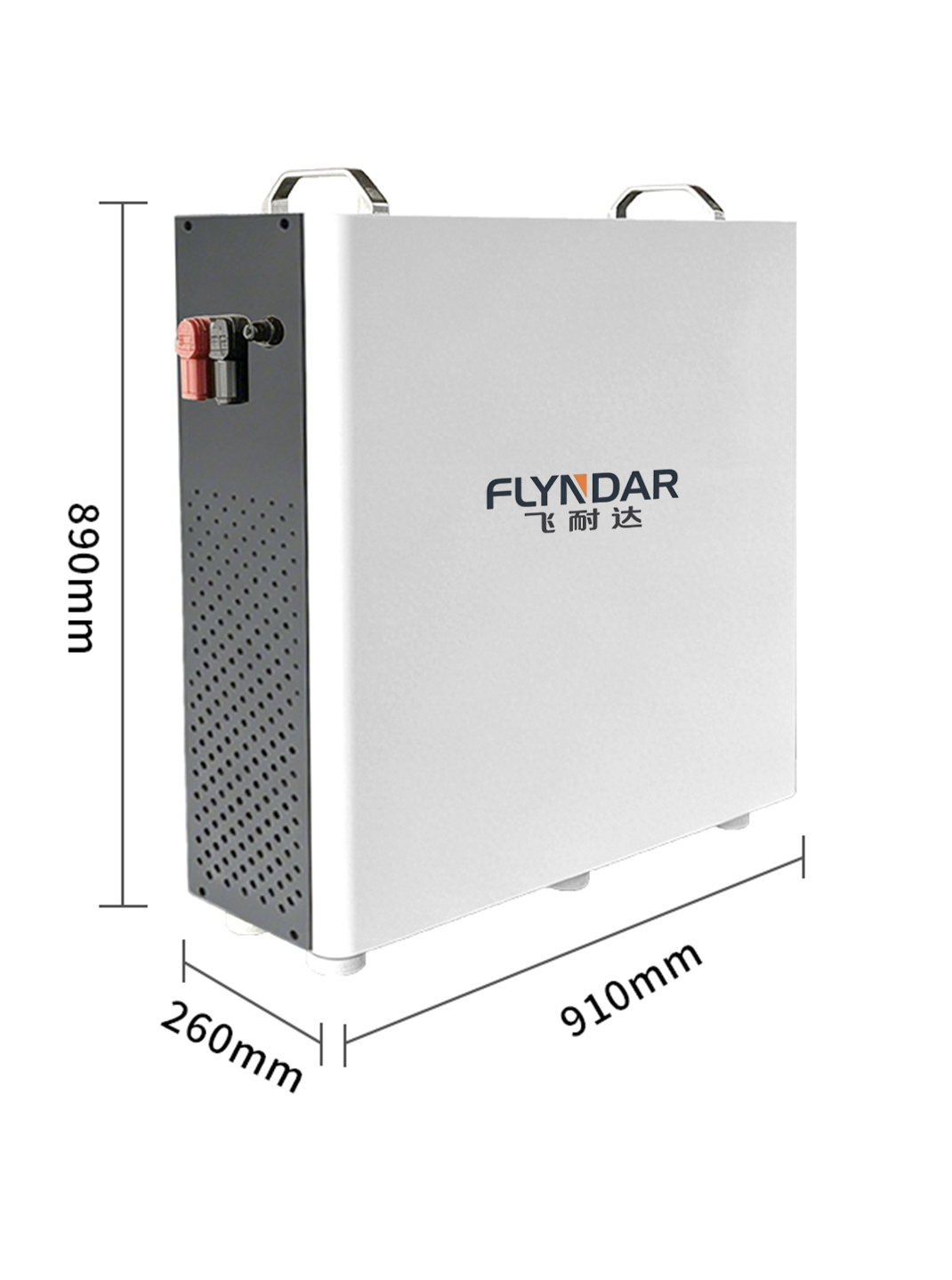

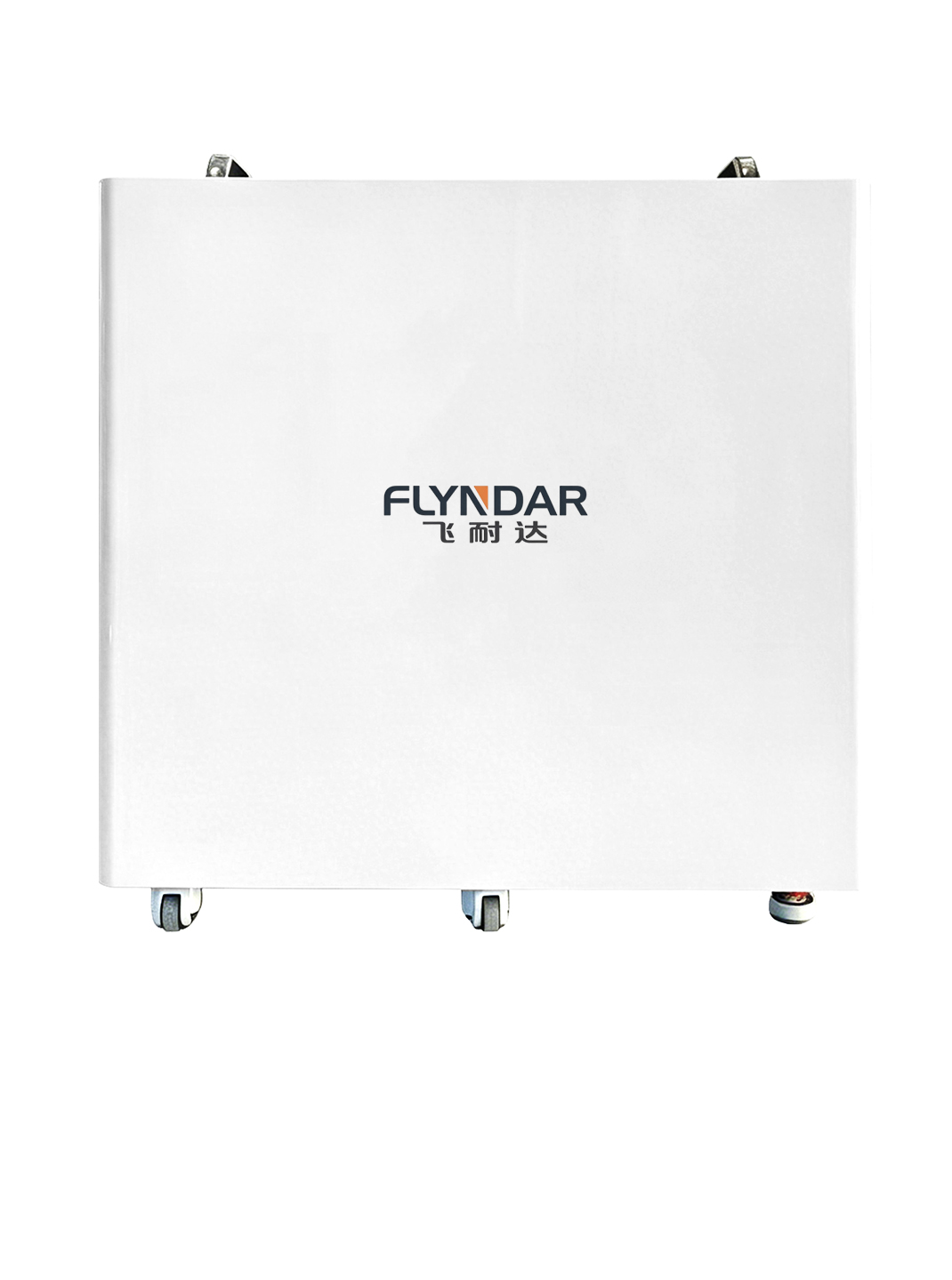

XC32P/LP628

32.15kWh Floor-Standing

⚡ High Efficiency 98.6% 🛡️ IP65 Weatherproof 🔋 LiFePO4 Cell Tech ⭐ 10-Year Warranty

Floor-standing 32.15kWh LFP battery built with 628Ah large cells for maximum energy release in a single stackable enclosure.

Request Quote / Contact Us Data Download

98.6%

Peak System Efficiency

< 10 ms

UPS Switchover Time

6000+

Battery Cycle Life

IP65

Protection Rating

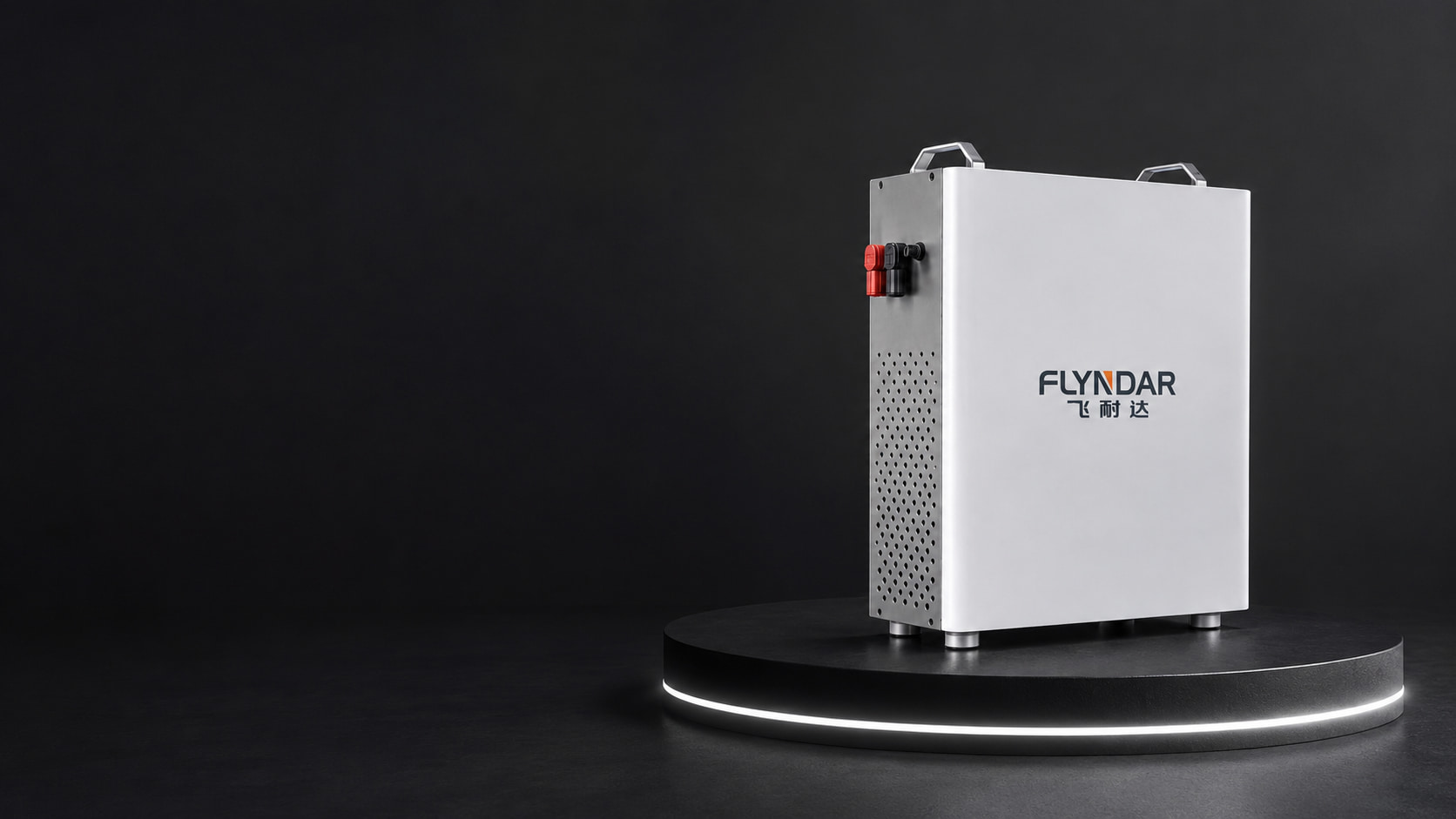

Product Advantage

The XC32P/LP628 delivers 16000W nominal charge/discharge power at IP65 outdoor-rated protection, ideal for demanding floor-standing residential and light-commercial deployments.

Safe & Reliable

Supports on-grid and off-grid applications
Superior safety experience, protecting electrical safety
Comprehensive cell temperature monitoring
Insured by PICC (People's Insurance Company of China)

High Performance

High cycle efficiency and long cycle life
628Ah large cells for maximum energy release
95% depth of charge/discharge for longer battery life

Smart & Scalable

Supports parallel operation with multiple units
Brand-new cells, traceable via QR code scanning
High-density design for more compact and efficient energy storage

Product Parameters

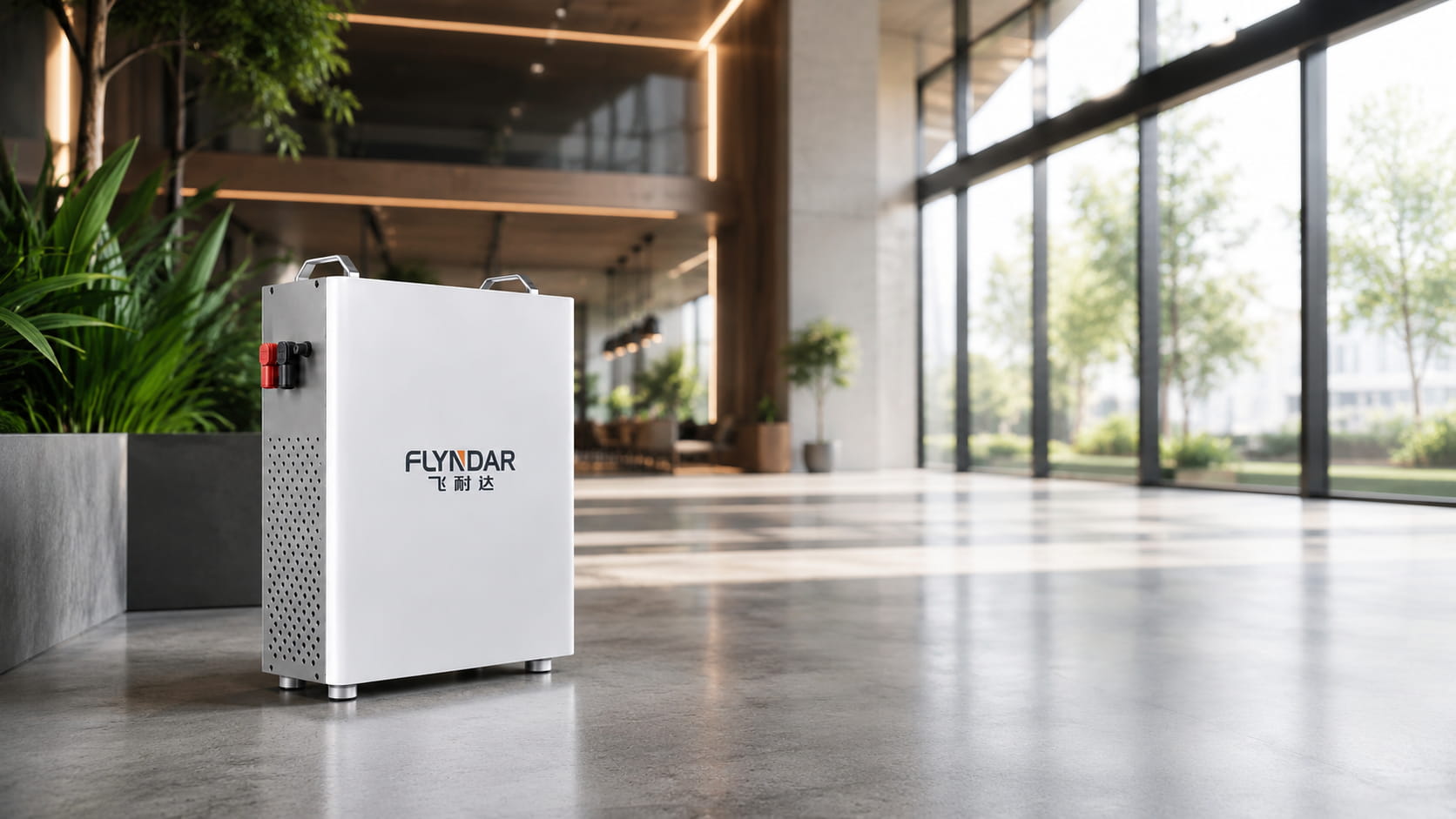

XC32P/LP628 32.0 (Parallel machine)

BATTERY

Cell Type	LFP (LiFePO4)
Cell Capacity	628Ah
Cell Configuration	16S1P
Nominal Voltage (V)	51.2
Usable Capacity (kWh)	32.15
Operating Voltage Range (V)	45.6 – 57.6
Nominal Charge/Discharge Power (W)	16000
Standard Charge/Discharge Current (A)	300

GENERAL

Cooling Method	Natural Convection
Relative Humidity	0–85%
Installation Method	Floor-Standing
Communicational Protocol	CAN, RS485
Ingress Protection Rating	IP65
Operating Temperature Range	Charging: 0~+50°C / Discharge: -10~+50°C
