XC16P/LP100

5.12kWh Stackable / Wall-Mounted

⚡ High Efficiency 98.6% 🛡️ IP65 Weatherproof 🔋 LiFePO4 Cell Tech ⭐ 10-Year Warranty

Compact 5.12kWh LFP battery module with 100Ah large cells, stackable or wall-mounted installation, and full on-grid/off-grid support for residential energy storage.

Request Quote / Contact Us Data Download

98.6%

Peak System Efficiency

< 10 ms

UPS Switchover Time

6000+

Battery Cycle Life

IP65

Protection Rating

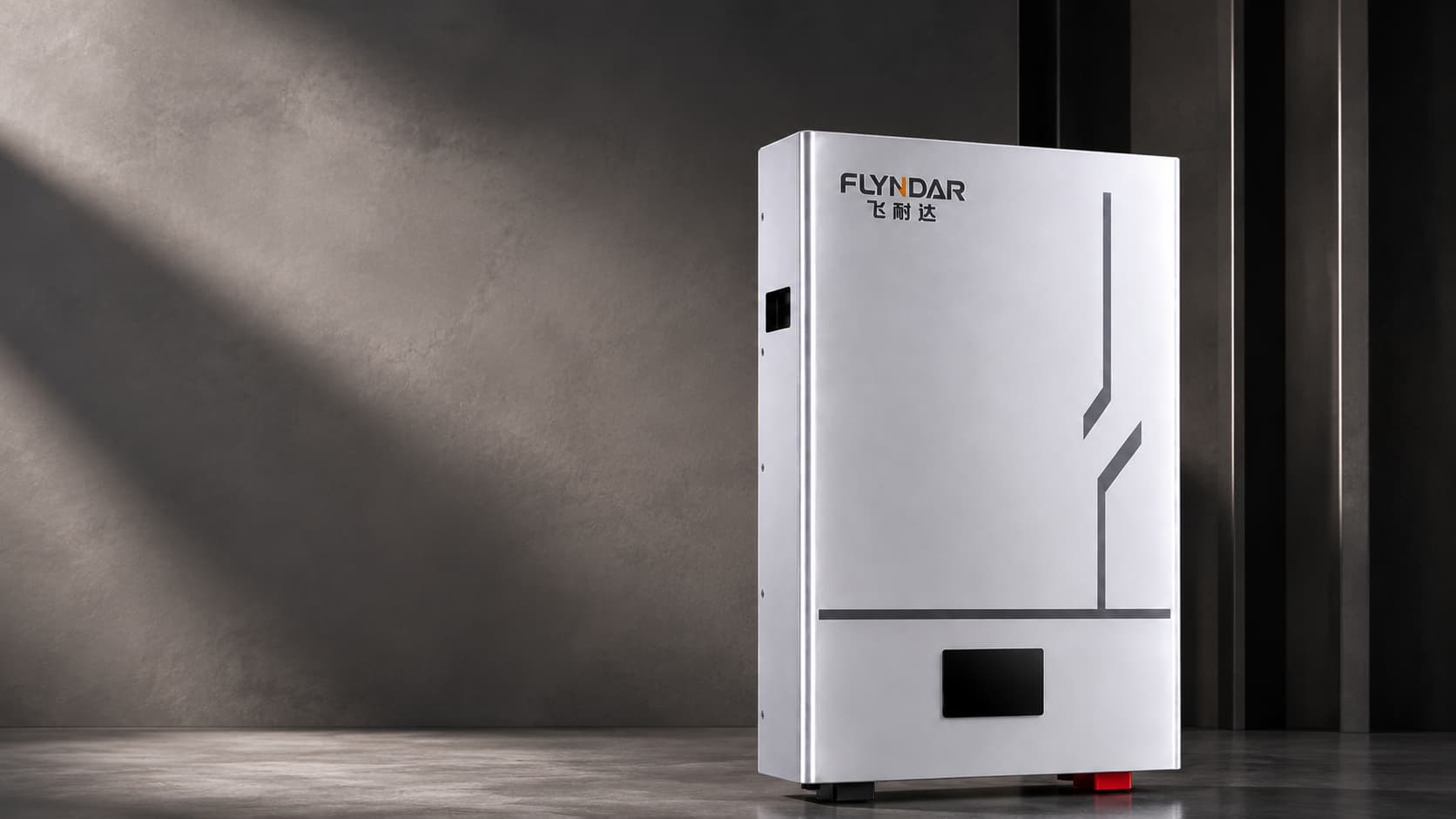

Product Advantage

The XC16P/LP100 pairs 16S1P cell configuration with a natural-convection enclosure rated IP20 for indoor use. Communicating over CAN and RS485, it supports parallel operation with multiple units and is backed by PICC insurance for reliable protection of your equipment.

Safe & Reliable

Supports on-grid and off-grid applications
Superior safety experience, protecting electrical safety
Comprehensive cell temperature monitoring
Insured by PICC (People's Insurance Company of China)

High Performance

High cycle efficiency and long cycle life
100Ah large cells for maximum energy release
95% depth of charge/discharge for longer battery life

Smart & Scalable

Supports parallel operation with multiple units
Brand-new cells, traceable via QR code scanning
High-density design for more compact and efficient energy storage

Product Parameters

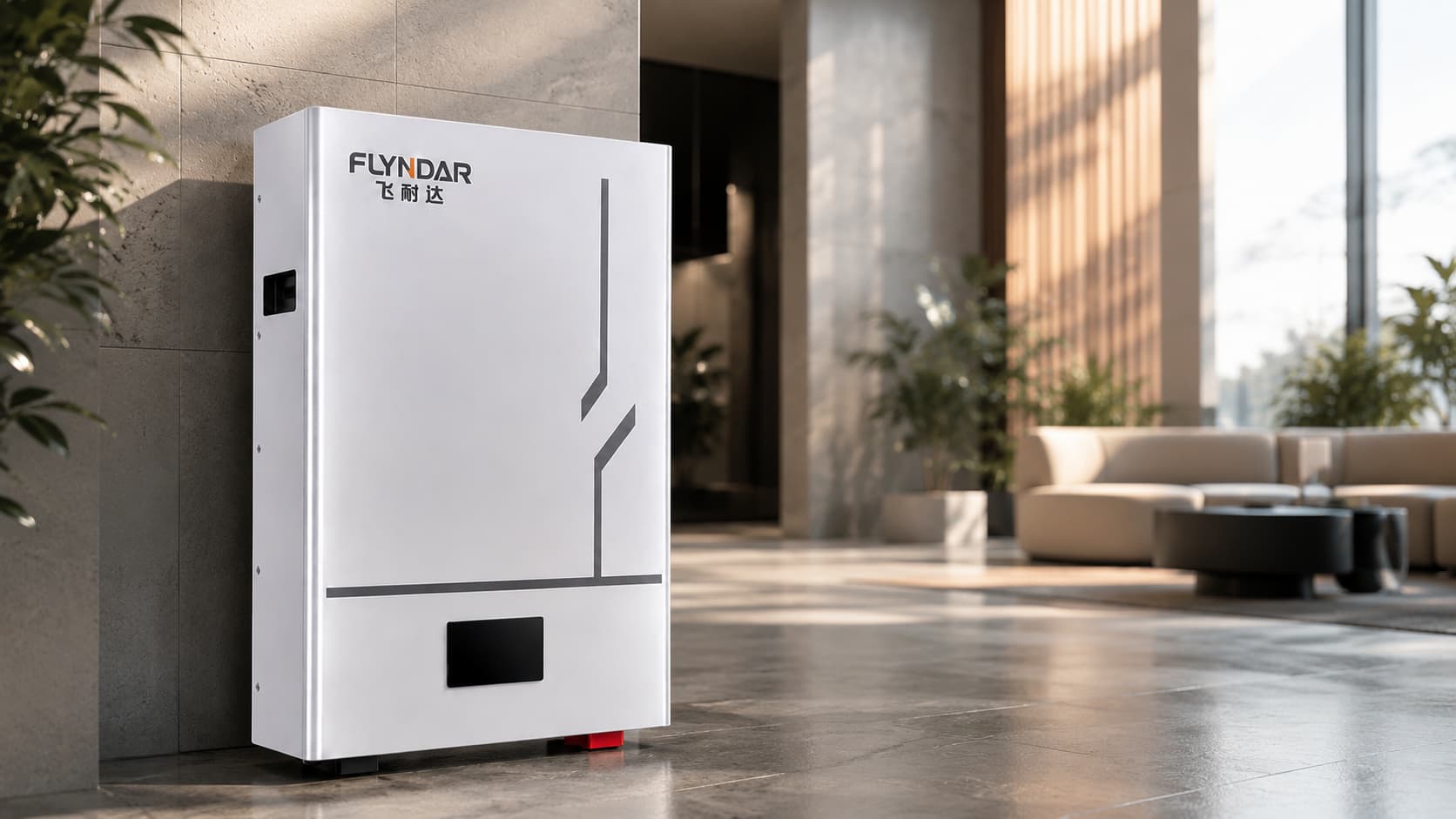

XC16P/LP100 5.0 (Parallel machine)

BATTERY

Cell Type	LFP (LiFePO4)
Cell Capacity	100Ah
Cell Configuration	16S1P
Nominal Voltage (V)	51.2
Usable Capacity (kWh)	5.12
Operating Voltage Range (V)	45.6 – 57.6
Standard Charge/Discharge Current	0.5C
Nominal Charge/Discharge Power (W)	2560

GENERAL

Cooling Method	Natural Convection
Relative Humidity	0–85%
Installation Method	Stackable / Wall-Mounted
Communication Protocol	CAN, RS485
Ingress Protection Rating	IP20
Operating Temperature Range	Charging: 0–+50°C / Discharging: -10–+50°C
