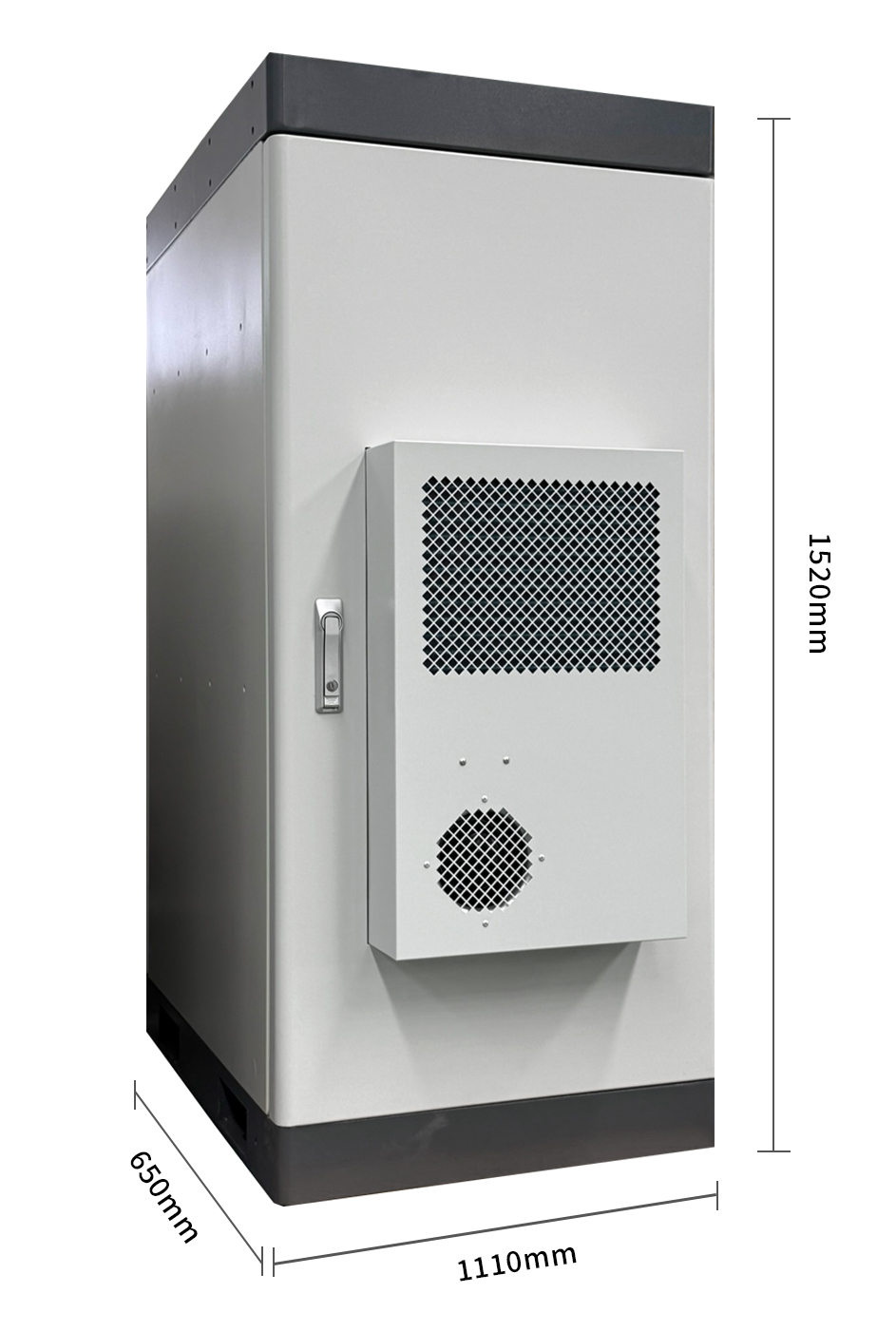

Low‑Voltage Energy Storage Cabinet Series
The XC16S series is floor‑mounted low‑voltage LFP energy storage cabinet, offering 48kWh / 64kWh options. Featuring industrial air‑condition cooling, IP54 rating, multi‑unit parallel capability, CAN/RS485 communication. Ideal for C&I storage, backup power, on‑grid and off‑grid projects.
Flexible Parallel Expansion：Supports multi‑cabinet parallel, fit for on‑grid & off‑grid commercial‑industrial applications. Traceable New LFP Cells：314Ah brand‑new traceable cells, full‑range cell monitoring, up to 95% DOD for longer service life. Harsh Environment Adaptability：Industrial air‑condition cooling, wide temperature range, IP54 protection for dust and moisture resistance. PICC Insured：Equipment insurance safeguards your investment.
Contact Us →
| Usable Capacity (kWh) | 48.21 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S3P |
| Rated Voltage (V) | 153.6V |
| Operating Voltage Range (V) | 127.2-172.8 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN, RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃；Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 64.28 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S4P |
| Rated Voltage (V) | 204.8V |
| Operating Voltage Range (V) | 169.6-230.4 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN, RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃；Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
