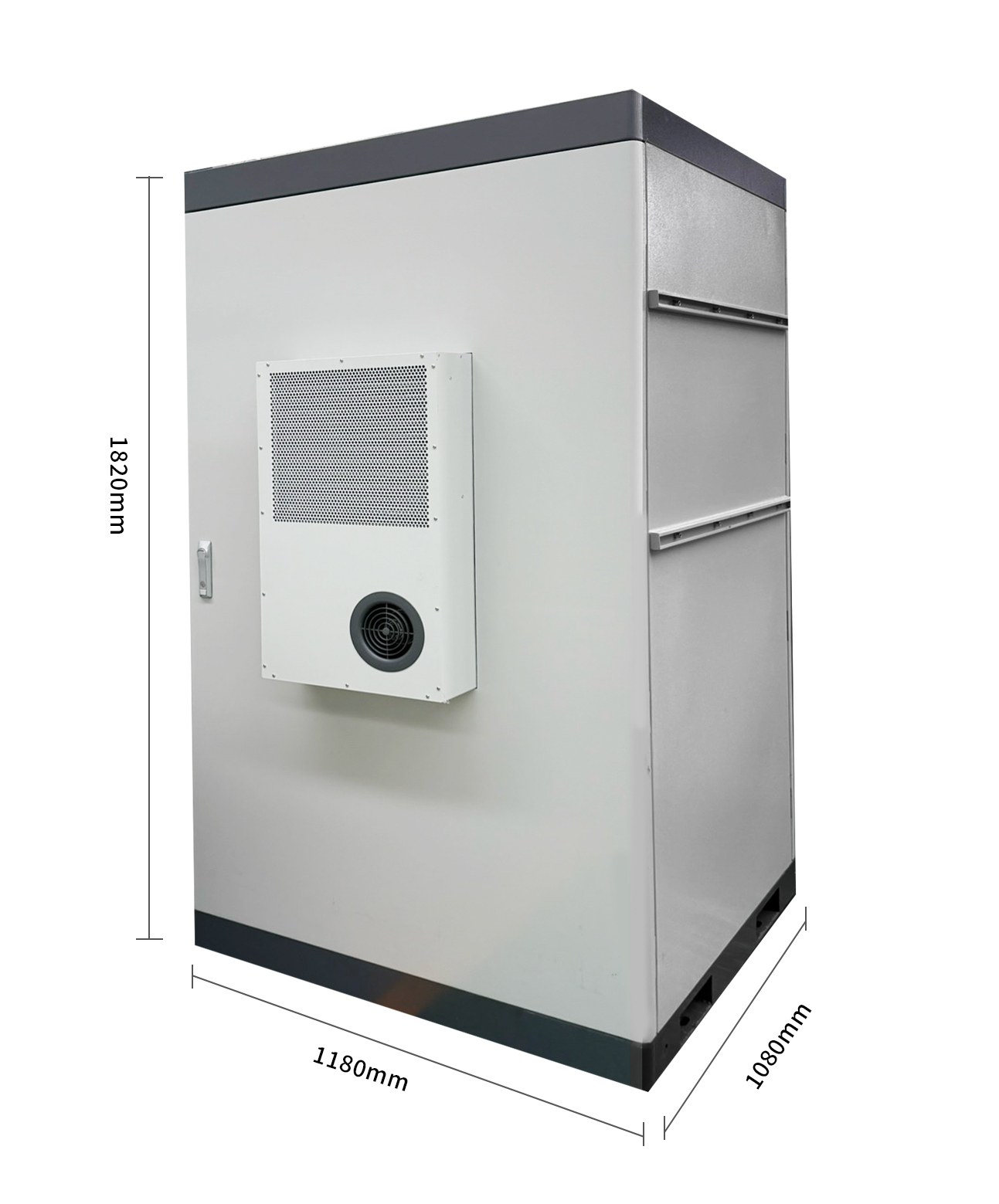

The XC16S High‑Voltage Air‑Cooled Energy Storage Series is floor‑mounted high‑voltage LFP battery cabinets, covering capacities from 80.38kWh up to 241kWh. Adopting 314Ah large‑capacity traceable LFP cells with flexible cell‑string configurations. Equipped with industrial air‑conditioning cooling system and IP54 protection rating. Supporting multi‑unit parallel expansion, CAN & RS485 communication. Suitable for commercial‑industrial energy storage, peak‑valley arbitrage, demand‑side management, on‑grid and off‑grid projects.
Wide‑Range Capacity Selection：Multiple models from 80kWh to 241kWh, flexible capacity matching for diversified project demands. Traceable Large‑Capacity LFP Cells：Brand‑new 314Ah traceable cells, full‑range cell voltage & temperature monitoring, up to 95% DOD for high energy utilization. Industrial‑Grade Active Cooling & IP54 Protection：Industrial air‑conditioning cooling, wide operating temperature range, IP54 dust‑moisture resistance for complex site conditions. Flexible Parallel & Rich Communication Interface：Supports multi‑cabinet parallel expansion, CAN / RS485 for seamless system integration. PICC Equipment Insurance：Insured by PICC to provide reliable risk protection for your energy‑storage projects.
Contact Us →
| Usable Capacity (kWh) | 80.38 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |

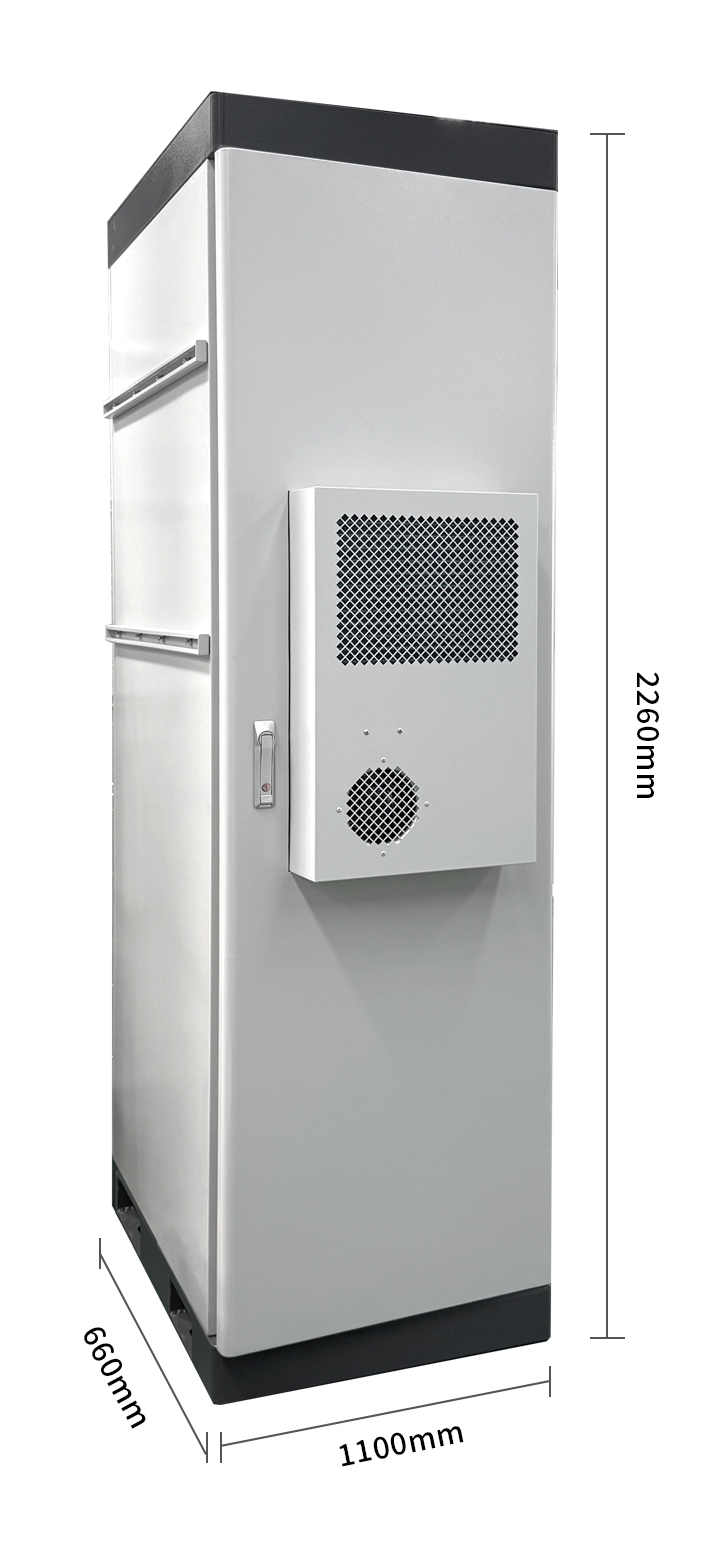

| Cell Configuration | 16S1P*5 |
| Rated Voltage (V) | 256 |
| Operating Voltage Range (V) | 212-292 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 96.5 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*6 |
| Rated Voltage (V) | 307.2 |
| Operating Voltage Range (V) | 254-350 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 112.5 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*7 |
| Rated Voltage (V) | 358.4 |
| Operating Voltage Range (V) | 296-408 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 128 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*8 |
| Rated Voltage (V) | 409.6 |
| Operating Voltage Range (V) | 339-467 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 144.7 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*9 |
| Rated Voltage (V) | 460.8 |
| Operating Voltage Range (V) | 381-525 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 160.8 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*10 |
| Rated Voltage (V) | 512 |
| Operating Voltage Range (V) | 424-584 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 176.8 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |

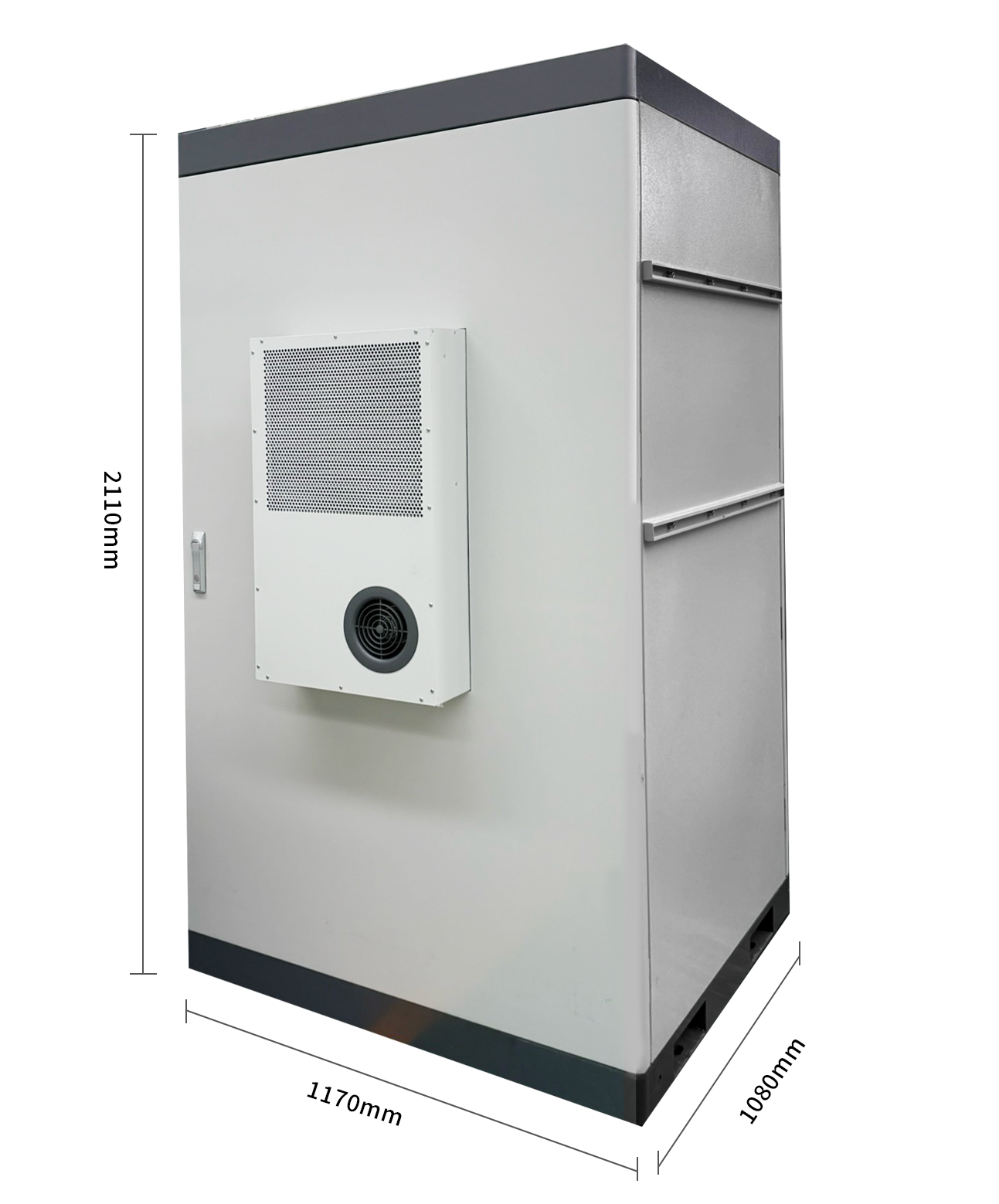

| Cell Configuration | 16S1P*11 |
| Rated Voltage (V) | 563.2 |
| Operating Voltage Range (V) | 466-642 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 192 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |

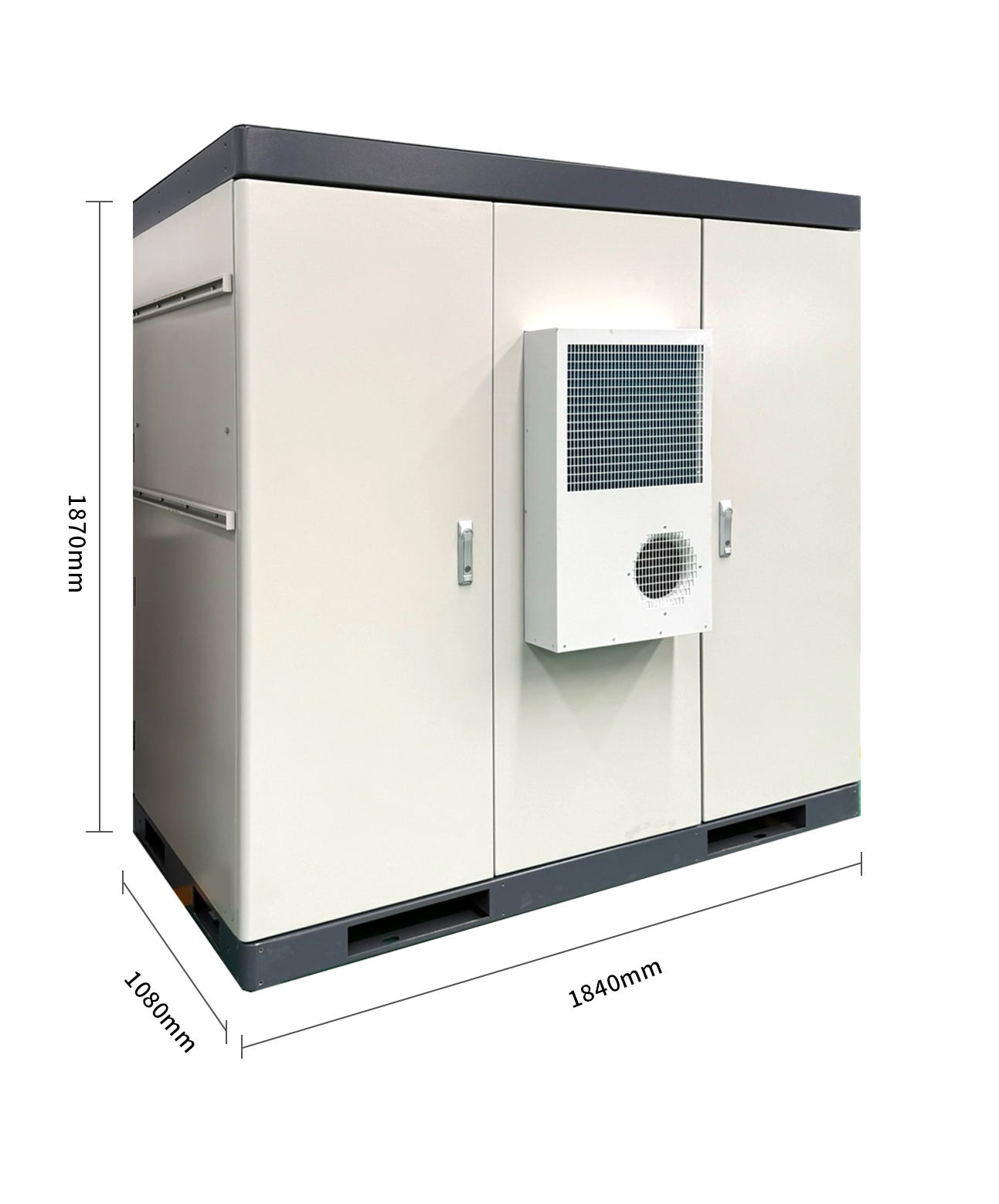

| Cell Configuration | 16S1P*12 |
| Rated Voltage (V) | 614.4 |
| Operating Voltage Range (V) | 508-700 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 208 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*13 |
| Rated Voltage (V) | 665.6 |
| Operating Voltage Range (V) | 551-759 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 224 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*14 |
| Rated Voltage (V) | 716.8 |
| Operating Voltage Range (V) | 593-817 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
| Usable Capacity (kWh) | 241 |
|---|---|
| Cell Type | LFP (LiFePO₄) |
| Cell Capacity | 314AH |
| Cell Configuration | 16S1P*15 |
| Rated Voltage (V) | 768 |
| Operating Voltage Range (V) | 636-876 |
| Standard Charge‑Discharge Current (A) | 157A |
| Rated Charge‑Discharge Rate (C‑rate) | 0.5 |
| Communication Method | CAN,RS485 |
| Operating Temperature Range (℃) | Charge: 0~50℃ / Discharge:‑20~50℃ |
| Relative Humidity (%) | 5-75% |
| Cooling Method | Industrial AC |
| Protection Class | IP54 |
| Installation Method | Floor‑Mounted |
